The 8-bit Turbonator

My very own DIY 8-bit computer

The current state of the build.

‹ ›

I've built my own 8-bit computer from 4000 and 74HC series CMOS ICs. It has 4KB of RAM and is Turing complete. It has 16 arithmetic operations in its ALU and can perform conditional jumps. Programs are loaded by a BIOS module from a cartridge.

I was among others inspired by the work of Ben Eater:
https://eater.net/
https://www.youtube.com/channel/UCS0N5baNlQWJCUrhCEo8WlA
Thanks for the inspiration.

Here's some basic info about the computer:

2KHz quarz clock (I haven't tested higher frequencies yet)
4KB of RAM
8-bit registers
16 ALU functions
Conditional Jumps
Dynamic memory addressing
Turing complete

Schematics and PCB layouts

The individual modules are plugged into a board connecting them on 36 rails. The modules are as follows (top to bottom). Links go the schematics and PCB designs.

Multiplexed display module with Decimal, hex and binary mode using a 28c64 EEPROM.

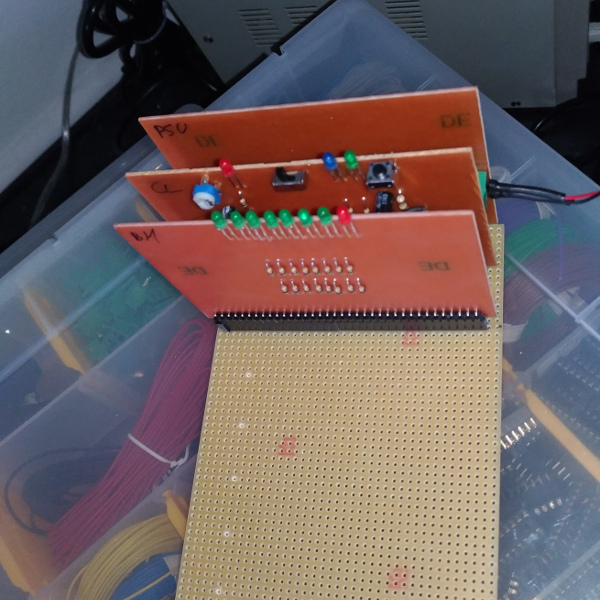

Power Supply Unit based on LM2676 supplying 5V with 3A maximum current
Clock module based on NE555. Planning to replace this with a 32.768KHz Quarz clock. (Only one clock module at a time)

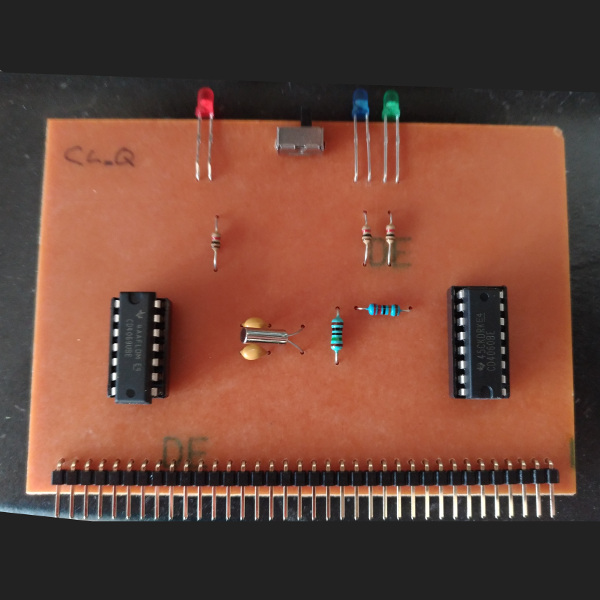

Quarz clock module based on CD4060. Currently running this with a 32.768KHz Quarz, resulting in 1.024KHz or 2.048KHz. (Only one clock module at a time)

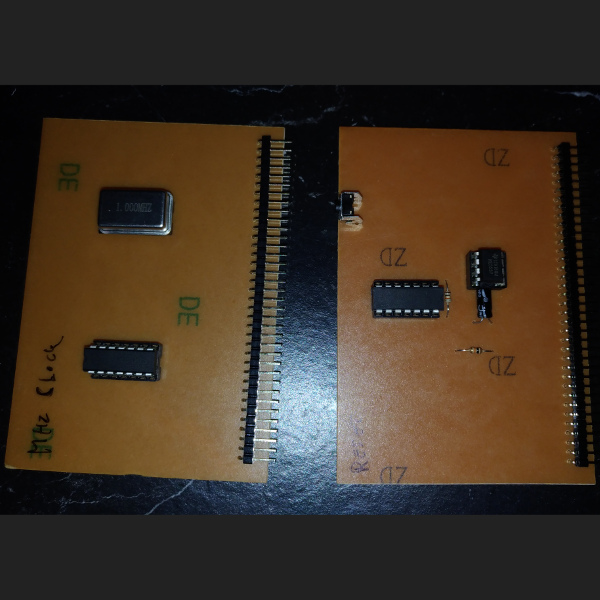

MHz Quarz clock module based on AQO14. Currently running this with a 1MHz Quarz Oscillator. (Only one clock module at a time)
Bus monitor with 8 LEDs showing the data currently on the bus. The least significant bit is red.

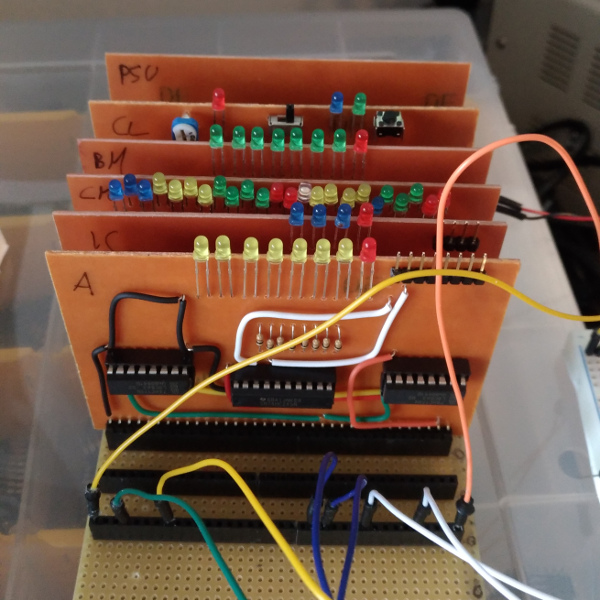

Control monitor showing the state of each of the 4 control lines
Memory address register I holding the lower 8-bit of the 12-bit memory address

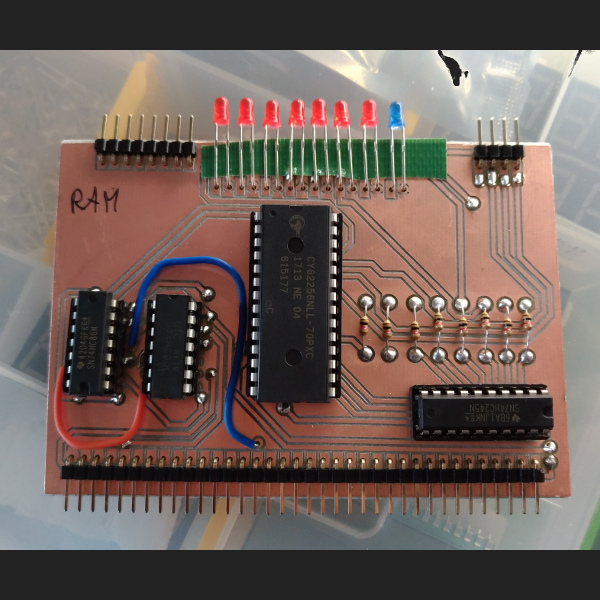

RAM Module connected to the two memory address registers to address 4KB of RAM. Using CY62256
Memory address register II holding upper 4-bit of the 12-bit memory address
Register A holding 8-bit of data

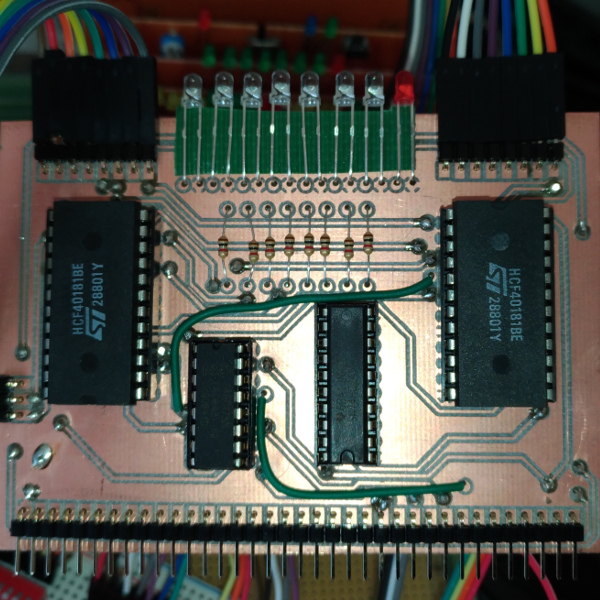

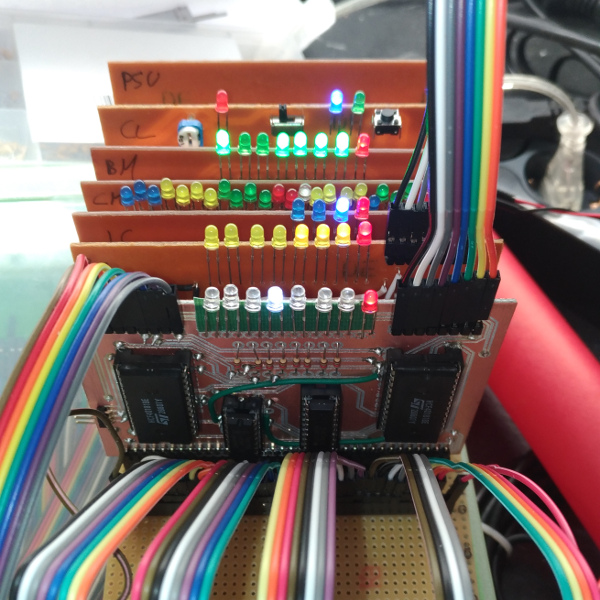

ALU based on two 40181 CMOS ICs using Registers A and B as input and holding an internal 4-bit ALU function register
Register B holding 8-bit of data
Program counter with 8-bits. Counts through up to 256 program lines. Also executed jumps and conditional jumps. (ALU carry bit is wired on the left)
Instruction counter, 4-bit counter counting through the substeps of each assembler command on the falling clock edge
Instruction register holding 4-bit instruction and a 4-bit parameter

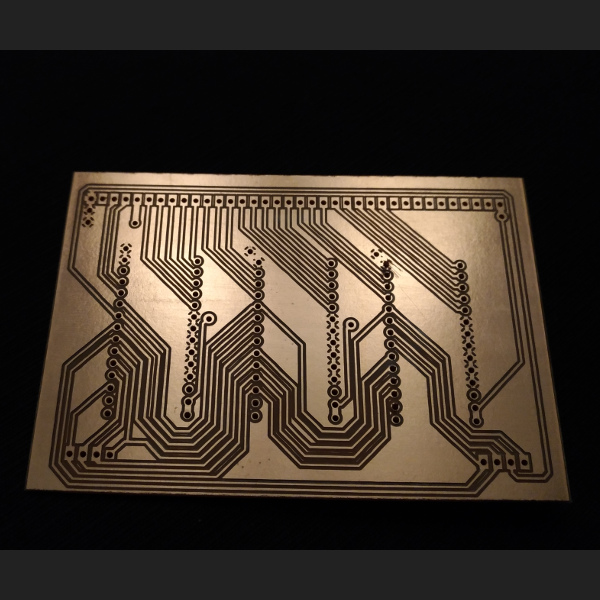

Control unit controls the 24 control lines using 3 28c64 EEPROMS. Update: Removed reset pin here, to be controlled by the reset module from now on. This was required since the noise of the MHz quarz before stabilization caused problems.
BIOS module storing the boot loader on an 28c64 EEPROM.
Reset module pulling the reset pin high until the capacitor is charged to allow the quarz to get into stable oscilation. Also adds a reset button.
Cartridge holding the program to be loaded into RAM by the BIOS.

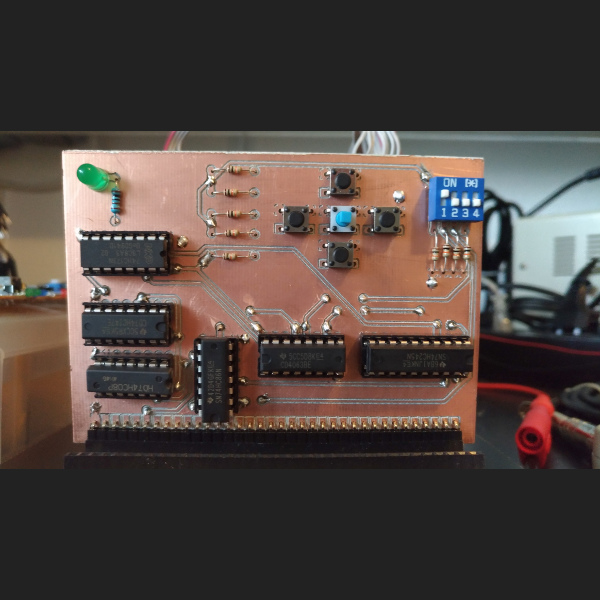

Keyboard with 5 buttons.

Notes:

I do not guarantee that the schematics and especially the PCBs layouts are free of mistakes.
I used 1KΩ (instead of the 470Ω I specified in my schematics) current limiting resistors on all LEDs to not be blinded by the light.
My PCB layout skills evolved quite a bit during this project, so the earlier ones might require some reworking.
All PCBs have been designed to be milled on my CNC on 100x70mm boards.
All vias on double layer boards need to be soldered through, hence there are no connections to DIL packages on the top layer.
I combined 7400 HC and 4000 series ICs on some boards, since some ICs are hard to come by. Theoretically, I believe there are 7400 HC equivalents of all 4000 series ICs I used, I just couldn't get them.
Some PCBs are more complicated than theoretically necessary since I couldn't get the reuqired chips or couldn't properly mill SMT pads on my boards, hence couldn't use the 7400 one gate series ICs.
Some design choices I made during this project were not ideal but I had to stick to them, in order to not have to start over.
I do not recommend to just copy my work. Just use it as inspiration and work your own way. You'll make some different choices and come up with your own designs. It's far more fun that way and you'll learn a lot more.

Next steps:

Build a cartridge with 4-bit paging resulting in 4KB of memory. (done, but not yet fully tested)
Build an IO module to interface with a dot matrix screen controlled by MAX7219 ICs. (on it)
Develop some higher level language/compiler to not go crazy writing programs. The 256 byte program memory will require reloading of code on runtime, making things tricky.
Run pong on the machine. (final goal)

The assembler

Commands
Command	Parameters	Description
NOOP		Do nothing
LDA	Memory address [0-4095]	Load RAM content to register A
STA	Memory address [0-4095]	Store Register A to RAM
LDAB	Upper 4 bits of memory address [0-15]	Load lower 8 bits of memory address from register B and load RAM content to register A
STAB	Upper 4 bits of memory address [0-15]	Load lower 8 bits of memory address from register B and store register A to RAM
LDIA	Value [0-255]	Load Value to register A
CALC0	Function [0-15]	Calculate with low carry in bit
CALC1	Function [0-15]	Calculate with high carry in bit
JC	Function [0-15], Memory address [0-255]	Jump to program line if calculation with low carry in bit yields high carry out bit. Use "JC 3" for unconditional jumps
JCC	Function [0-15], Memory address [0-255]	Jump to program line if calculation with high carry in bit yields high carry out bit
OUT		Display content of register A
AtoB		Copy register A to register B
IOACT	IO device ID [0-15]	Activate IO device matching id, deactivate all others
IOREAD		Reads IO data from active IO device into memory address stored in register A and overwrites register A with IO data
IOWRITE		Write data from memory address stored in Register A to active IO device
HALT		Halt computer

The ALU functions

ALU functions
ID	CALC0 / JC	CALC1 / JCC
0	A	A plus 1
1	A + B	(A + B) plus 1
2	A + B_	(A + B_) plus 1
3	minus 1	Zero
4	A plus AB_	A plus AB_ plus 1
5	(A + B) plus AB_	(A + B) plus AB_ plus 1
6	A minus B minus 1	A minus B
7	AB_ minus 1	AB_
8	A plus AB	A plus AB plus 1
9	A plus B	A plus B plus 1
10	(A + B_) plus AB	(A + B_) plus AB plus 1
11	AB minus 1	AB
12	A plus A	A plus A plus 1
13	(A + B) plus A	(A + B) plus A plus 1
14	(A+ B_) plus A	(A + B_) plus A plus 1
15	A minus 1	A

Where A+B is a bitwise OR, AB is a bitwise AND and A_ is the complement of A. Taken from the HCF40181B datasheet.

Try it for yourself

An editor, emulator, and compiler for my assembler that runs right in your browser can be found here.

Watch it on YouTube

A video of the computer loading and executing a program calculating the 13th Fibbonacci number and dividing it by 3 at 500Hz can be found here.

What you see:

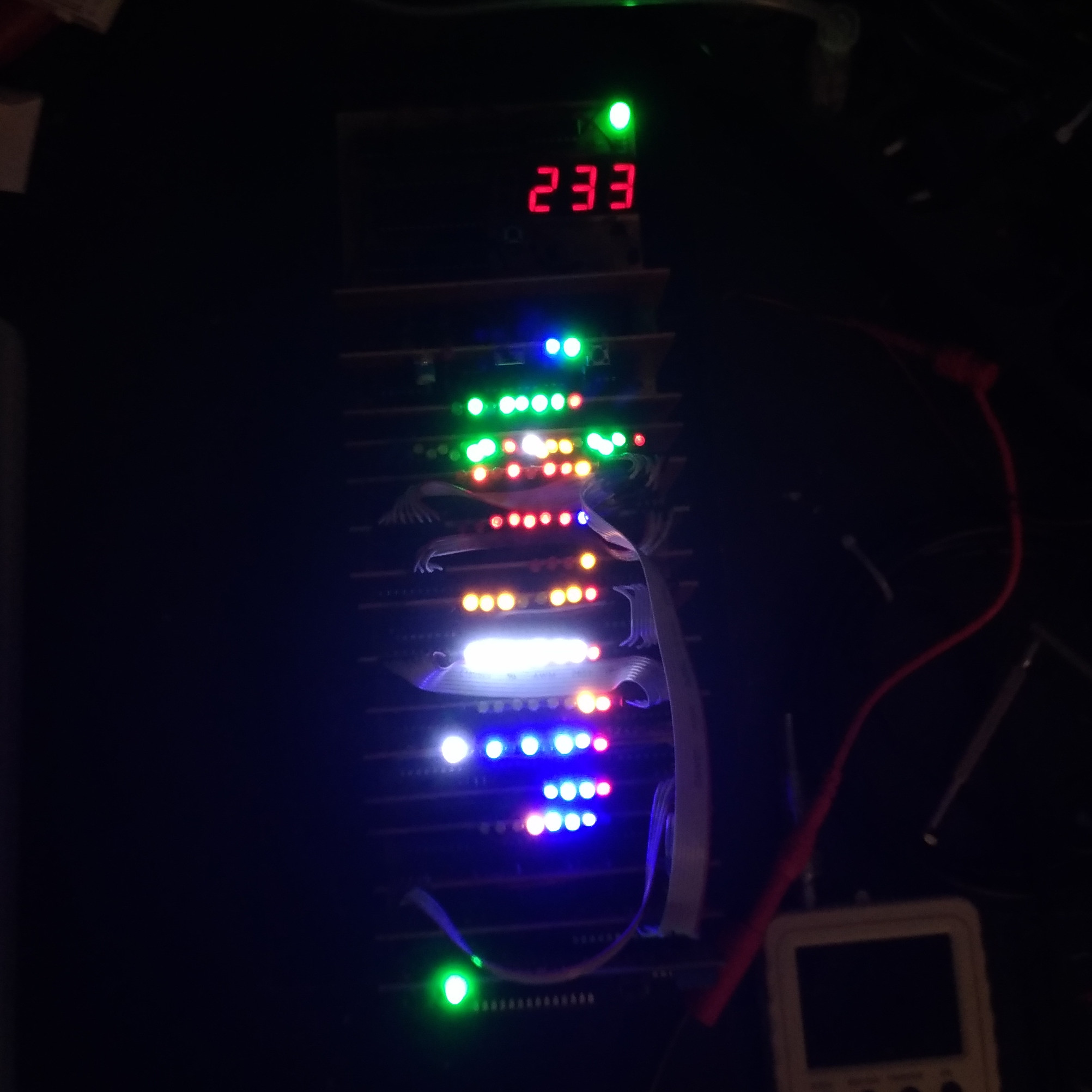

First, you see the computer counting up to 94 while the left blue LED on the control monitor is on. This indicates the BIOS is loading the program from the cartridge to ram. As the BIOS itself has 22 lines, the counter starts at 22 and loads 72 lines of code into RAM. after that the BIOS LED turns off and the program executes, calculating the 13th Fibonacci Number, which is 233, then dividing it by 3,yielding 77. Then the computer halts and I give it a thumbs up.

A video of the computer loading and executing a program calculating the 13th Fibbonacci number and dividing it by 2 at 2.048KHz using the new quarz clock can be found here.

A video of me interacting with the computer through the new keyboard module can be found here: here.

A video of the computer loading and executing a program calculating the Fibbonacci sequence at 40Hz can be found here.

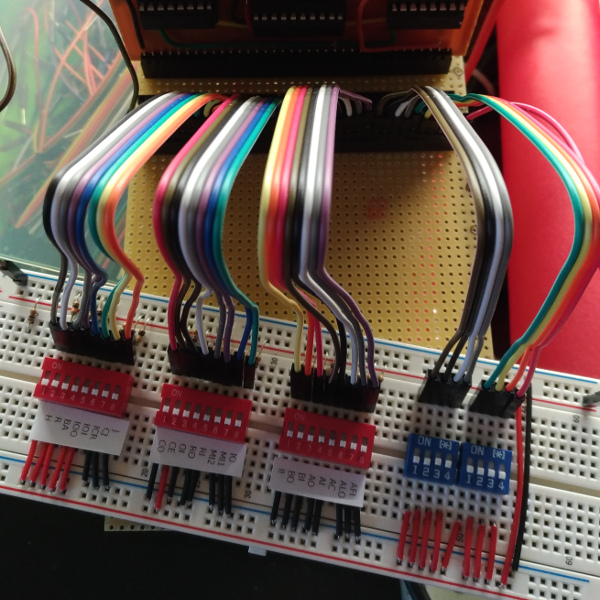

The main rails connecting all modules

Rails
Pin	Name	Function
1	VCC	+5V
2	CLOCK	Clock pulse
3	BUS0	Bus bit 0
4	BUS1	Bus bit 1
5	BUS2	Bus bit 2
6	BUS3	Bus bit 3
7	BUS4	Bus bit 4
8	BUS5	Bus bit 5
9	BUS6	Bus bit 6
10	BUS7	Bus bit 7
11	CTRL0	ALU function register in
12	CTRL1	ALU out
13	CTRL2	ALU carry bit
14	CTRL3	Register A in
15	CTRL4	Register A out
16	CTRL5	Register B in
17	CTRL6	Register B out
18	CTRL7	Instruction register in
19	CTRL8	Instruction register out
20	CTRL9	Memory address register 1 in
21	CTRL10	Memory address register 2 in
22	CTRL11	RAM in
23	CTRL12	RAM out
24	CTRL13	Output in
25	CTRL14	Counter enable
26	CTRL15	Counter out
27	CTRL16	Counter in / Jump
28	CTRL17	Conditional Jump
29	CTRL18	Instruction counter reset
30	CTRL19	I/O device out
31	CTRL20	I/O device in
32	CTRL21	BIOS active
33	CTRL22	Reset
34	CTRL23	Halt
35	CLOCK_I	Inverted clock pulse
36	GND	Ground

EEPROM code and assembler definition

I defined my assembler and BIOS within an libreoffice calc sheet. It can be downloaded here

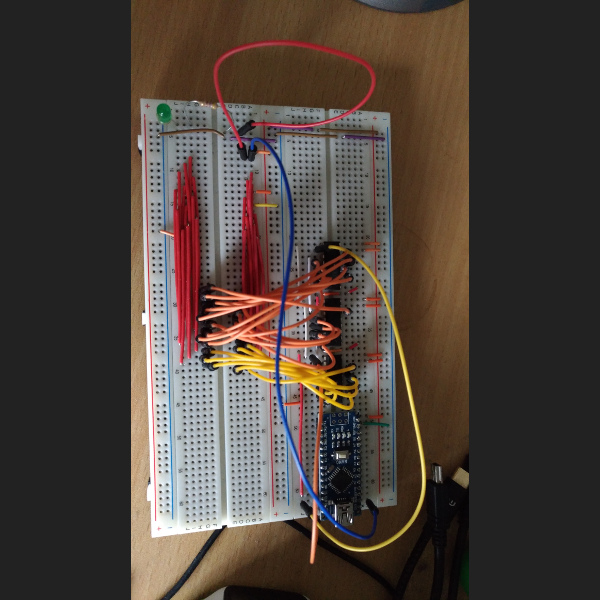

EEPROM writer

I've built my EEPROM writer as described by Ben Eater in this video

The Arduino programs can be downloaded here:
